In civil and industrial construction, railings and handrails not only provide aesthetic value but also play an important role in ensuring user safety. Therefore, the structural calculation of railings and handrails must be carried out in accordance with technical standards issued by the State, especially the Vietnamese Standards (TCVN). Together with CMC Architects, explore the regulations, formulas, and optimal solutions in the design – construction of safe and durable railings and handrails.
1. The role of railings and handrails in construction
Railings and handrails are often installed in locations such as:
- Balconies, stairs, elevated walkways
- Corridors, working platforms, rooftops
- Areas prone to slipping or accidents
Their main functions are to prevent falls, support movement, while also bringing modern beauty and architectural consistency.

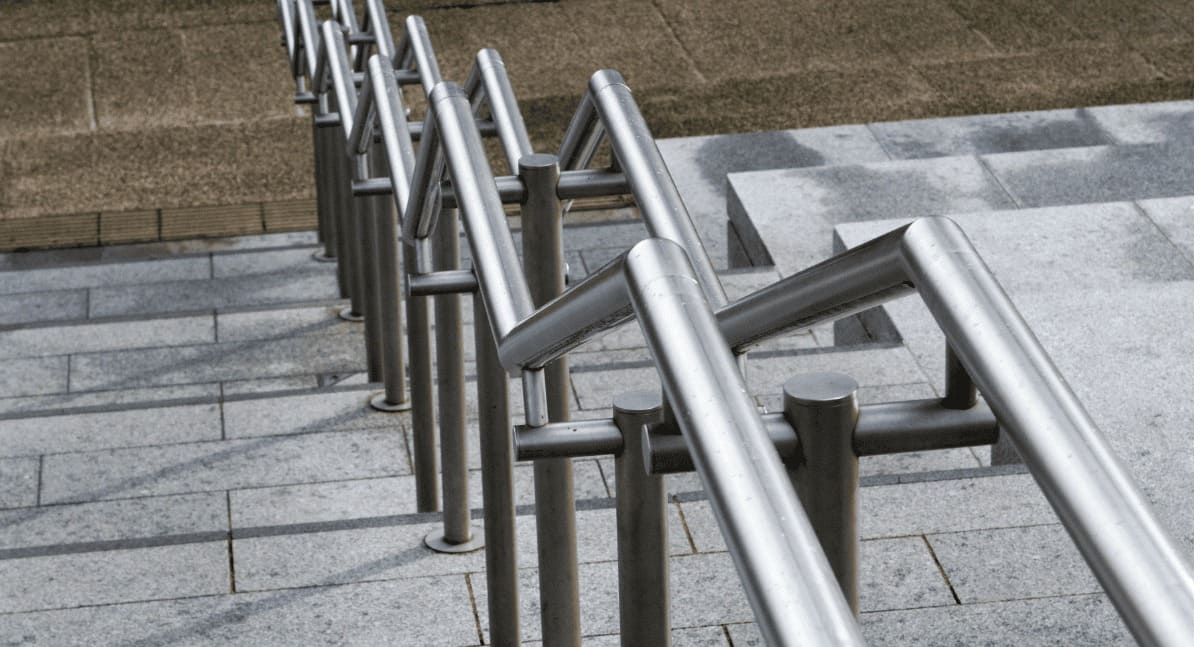

2. Vietnamese standards applied in the calculation of railings – handrails
TCVN 2737:1995 – Loads and impacts
- The horizontal load applied to railings is specified as not less than 300 N/m (~30kg/lm) for residential buildings, and 500–1000 N/m for public buildings, industrial stairs.
- Both static and dynamic loads must be considered, especially in areas with heavy traffic.
TCVN 5574:2018 – Concrete and reinforced concrete structures
- For concrete railings, calculations must consider bending resistance, tensile strength, and deflection checks.
- The connection details with floors and beams must ensure stable force transmission.
TCVN 4453:1995 – Steel structures in construction
- Steel railings and handrails must be designed according to load-bearing capacity – limit stress.
- Common materials used: galvanized steel, stainless steel 304, extruded aluminum.
- Welds and bolts must be calculated for shear, tension, and torsion resistance.
3. Principles of railing – handrail structural design according to TCVN
✅ Safe height:
- Minimum 900 mm for indoor stair railings
- Minimum 1100 mm for outdoor balconies and roof decks
✅ Spacing of horizontal – vertical bars:
- Spacing no greater than 100 mm to prevent children from slipping through
- Avoid “ladder-style” designs with continuous horizontal bars that may encourage climbing
✅ Handrails:
- Must be sturdy, easy to grip, smooth surface, and non-slip
- Handrail diameter should be between 30–50 mm, with at least 40 mm clearance from the wall
✅ Materials:
- Hot-dip galvanized steel: weather-resistant, corrosion-resistant
- Stainless steel 304: high durability, elegant, easy to clean
- Wood, tempered glass: often used for premium interiors, requiring special calculations

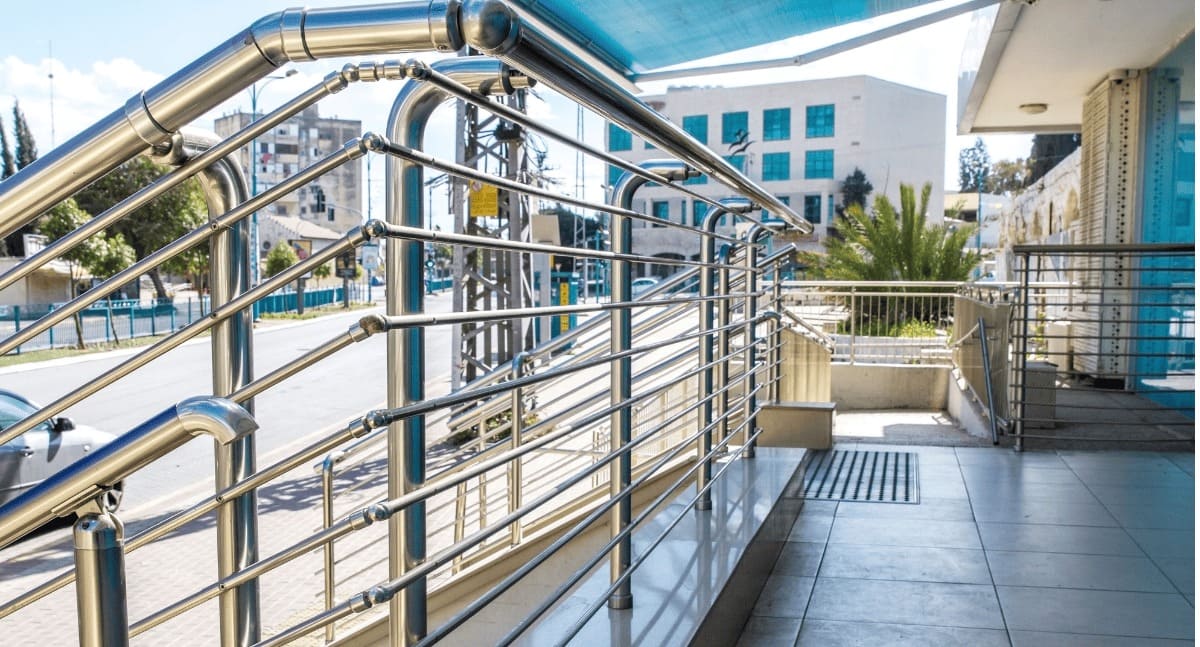

4. Steps for calculating railing – handrail structures
- Determine the location and function of the railing (interior, exterior, industrial, or residential)
- Calculate horizontal loads, impact loads, and human-induced loads
- Choose materials and cross-sections according to load standards
- Calculate the connection between the railing and the main structure (floor, beam, column)
- Analyze the structural model using software (SAP2000, Etabs, Tekla)
- Check deflection, vibration, and maximum stress to ensure they do not exceed allowable limits

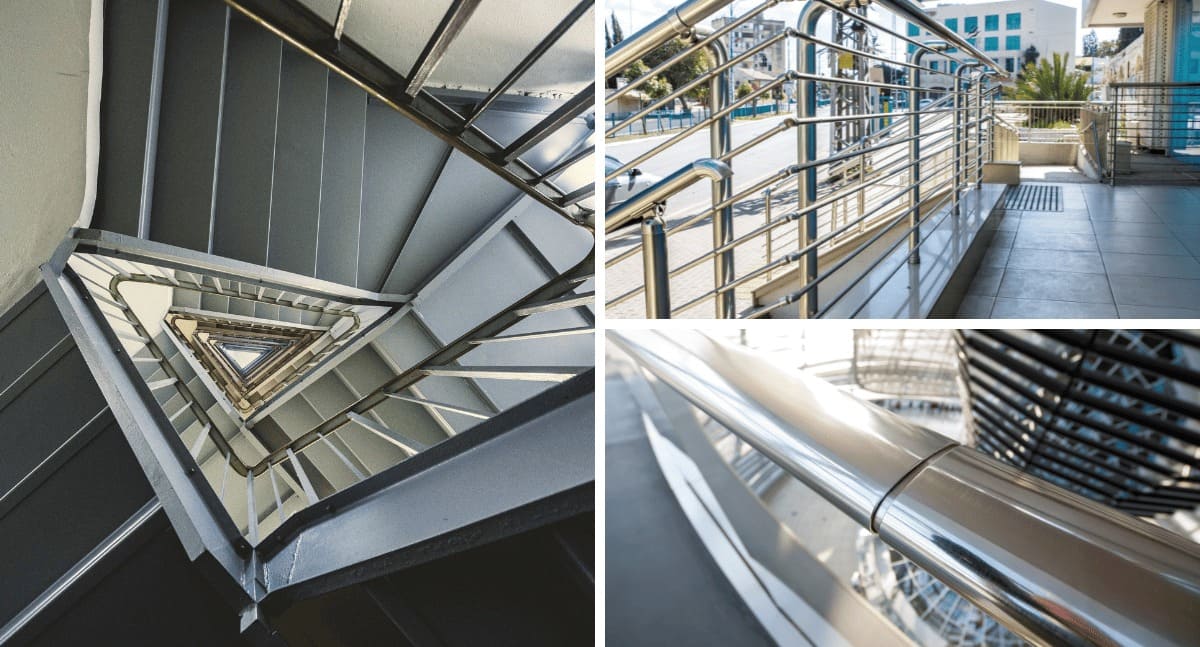

5. Consulting and designing railings – handrails at CMC Architects
With over 15 years of experience in design and construction, CMC Architects Vietnam provides safe, aesthetic, and cost-effective railing – handrail solutions. Services include:
- Consulting on choosing materials and structures suitable for each project
- Structural calculations ensuring compliance with TCVN, Eurocode, and international standards
- 3D BIM modeling to simulate railing – handrail structures
- Manufacturing and installation with ISO 9001:2015 quality control
6. Conclusion
Railing and handrail calculation is a vital step to ensure safety and durability for construction projects. With a team of experienced engineers and modern technology, CMC Architects Vietnam is a trusted partner in providing optimal railing solutions.
